How to Set Up a DVR

Views: 0

How to Set Up a DVR, A digital video recorder (DVR), also referred to as a personal video recorder (PVR) particularly in Canada and British English, is an electronic device that records video in a digital format to a disk drive, USB flash drive, SD memory card, SSD or other local or networked mass storage device. The term includes set-top boxes (STB) with direct to disk recording, portable media players and TV gateways with recording capability, and digital camcorders.

Personal computers are often connected to video capture devices and used as DVRs; in such cases the application software used to record video is an integral part of the DVR. Many DVRs are classified as consumer electronic devices. Similar small devices with built-in (~5 inch diagonal) displays and SSD support may be used for professional film or video production, as these recorders often do not have the limitations that built-in recorders in cameras have, offering wider codec support, the removal of recording time limitations and higher bitrates.

How to Set Up a DVR A Step-by-Step Guide

Setting up a Digital Video Recorder (DVR) can seem daunting, but it’s quite manageable with the right instructions. This guide will walk you through the process to ensure you can record and store your favorite TV shows and movies with ease.

image1 718w546h

Step 1: Unpack Your DVR

Begin by unpacking your DVR and ensuring you have all necessary components:

 DVR unit
 Power adapter
 Remote control
 HDMI or RCA cables
 User manual

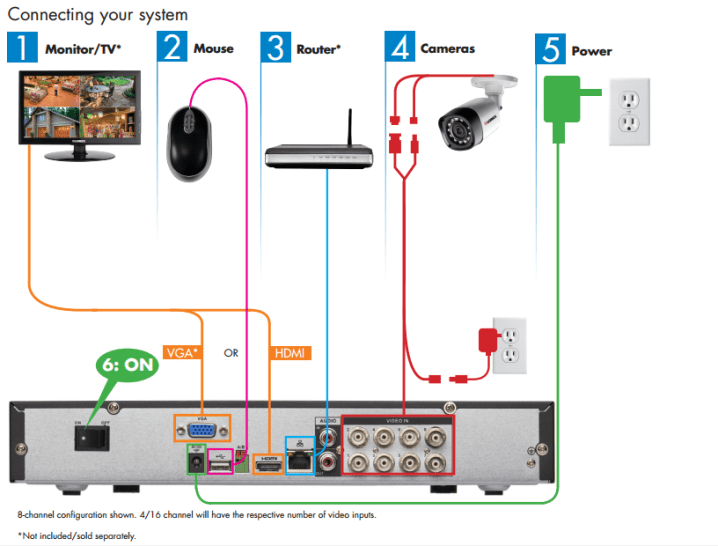

Step 2: Connect the DVR to Your TV

1.Power Connection: Plug the power adapter into the DVR and connect it to an electrical outlet.
2.Video Connection:
 For HD TVs, use an HDMI cable. Connect one end to the DVR’s HDMI output and the other end to your TV’s HDMI input.
 For older TVs, use RCA cables. Connect the red, white, and yellow plugs into the corresponding outputs on the DVR and inputs on your TV.

Step 3: Connect the DVR to Your Cable or Satellite Box

Use a coaxial cable to connect your cable or satellite box to the DVR:

1.Connect one end of the coaxial cable to the output port on your cable/satellite box.
2.Connect the other end to the input port on your DVR.

Step 4: Initial Setup and Configuration

1.Turn On Devices: Power on your TV and DVR.
2.Select Input Source: On your TV, select the input source corresponding to the connection you used (HDMI or RCA).
3.DVR Setup Wizard: Follow the on-screen instructions provided by the DVR setup wizard. This typically involves setting the date and time, selecting your TV service provider, and scanning for available channels.

Step 5: Connecting to the Internet (Optional)

If your DVR supports online features (such as streaming apps or remote access), connect it to the internet:

1.Wired Connection: Use an Ethernet cable to connect the DVR to your router.
2.Wireless Connection: Follow the DVR’s menu options to connect to your Wi-Fi network. You may need to enter your Wi-Fi password.

Step 6: Setting Up Recording Preferences

1.Access Recording Menu: Using the DVR remote, navigate to the recording menu.
2.Schedule Recordings: Select the shows or movies you want to record. You can usually choose to record single episodes or set up a series recording.
3.Storage Management: Check your DVR’s storage capacity and manage your recordings. Delete old or watched recordings to free up space.

Step 7: Test the Setup

Record a short program or segment to ensure everything is working correctly. Play back the recording to check the quality and confirm that the DVR is functioning as expected.

Troubleshooting Tips

 No Signal: Ensure all cables are securely connected and the TV is set to the correct input source.
 Poor Video Quality: Verify that you are using the best available connection (HDMI for HD quality).
 Recording Issues: Check your DVR’s storage capacity and ensure it is not full. Confirm that the DVR’s timer and date settings are correct.

By following these steps, your DVR should be set up and ready to use. Enjoy the convenience of recording and watching your favorite programs at your leisure!


.

How to Set Up a DVR
SCK is revisiting Coax technology today with our get-started guide on how to set up a DVR. Learn along with us today!

In this particular post, I’ll show you how to set up a DVR. You learnt that you recently purchased a new DVR, and I’m assuming you’re reading this post. Setting up a DVR is relatively simple, but we have some things to discuss first. For example, what is a DVR? What sorts of cameras can you use with a DVR, what other information do you need to get started today, what tools and requirements you must have, and more. We’ll go over everything in this post so that you can learn as much as possible.

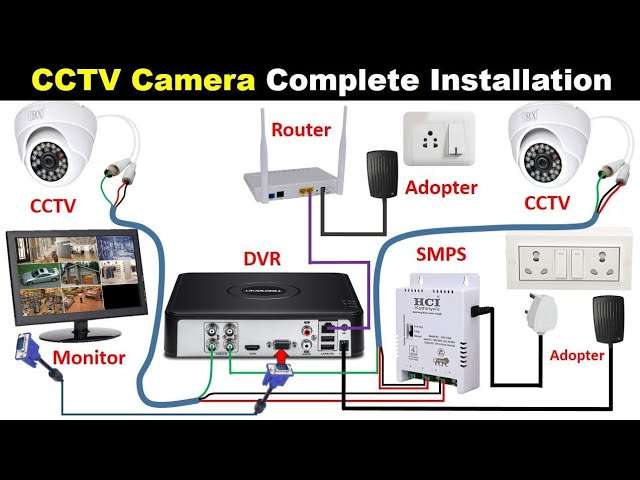

DVRs, otherwise known as Digital Video Recorders, are security technology devices used to record surveillance and security footage in real time. DVRs are a key component in CCTV systems, which are closed-circuit television systems that record video in real time. Along with cameras and mounting equipment, DVRs are the centerpieces of CCTV systems and have been the dominant technology for recording footage since the beginning of time. DVRs primarily connect to COAX cameras via RG59 COAX cables to record footage digitally. In ancient times, footage was sent using an analogue signal. Because this is no longer the case, many people still refer to COAX cameras and DVRs as ‘analogue CCTV systems’ although this is not technically accurate.

Because DVRs are now connected to coax cameras by a digital signal, they can produce a lot higher resolution than before when using analog signals. Most DVRs today are hybrid systems that incorporate AHD, TVI, and CVI signals as well as CVBS. There are, however, a number of DVRs that utilize UIP or network cameras, although the number and channel selection may vary from one device to the next.

It is crucial to understand that setup and installation are not synonymous. Even though you may be able to handle the setup of your DVR after installation, the latter should be handled by a professional security technician. COAX cameras, COAX cables, power cables, distribution boxes, mounting brackets, power tools, and other hardware must be handled properly and safely in order to adequately and safely install CCTV equipment. To put it another way, drilling holes and creating pathways for wires, sealing these up to prevent weather problems, mounting and pointing cameras, powering and recording signals, and more must be performed during installation.

Before mounting the equipment, your security installer should test it to ensure that it functions properly and that every part is working. Here are some of the things that you need to think about when purchasing security cameras. We can help you with this or your contractor/installer.

There are a number of steps involved in setting up a DVR that has already been properly installed by a licensed security contractor or technician. From choosing the correct unit to navigating through the DVR’s menus to making sure that it suits your needs, setting up is the process of doing everything necessary to get the DVR up and running. You can set up the DVR to record at a particular time, for instance, as well as adjust the resolution and encoding settings.

During setup, your DVR will go through a wizard. The most important thing you can do here is set up your username, which is ‘admin’ by default and must be a minimum of eight characters. The password must be a minimum of eight characters and include both letters and numbers. You will also be asked to set up a pattern login, in which you may create a ‘connect the dots’ pattern to use instead of typing your password. We recommend keeping a record of your password somewhere secure so that you may use the pattern. You will need that password to perform many functions.

You’re finished entering your password! Just follow the setup wizard until the end to finish setting your date and time, and you can turn on DST if you like. You may also use this wizard to set motions and record schedules with it. Finally, if you haven’t already, you should take a look at the Encode Page under your main menu. Here, you will be able to set up all your cameras to the resolutions and bitrates you want!

Now that you have read through this article you should have a pretty solid idea of how to set up a DVR. If you’re interested in upgrading to a newer more advanced technology using IP cameras talk to one of our sales[ pros firs.tg You might be surprised to find that your coax system is actually doing a great job, you might find its a good time to upgrade, give us a call!

.
