How to Set NVR People Counting

How to Set NVR People Counting

Introduction

To monitor the flow of people, we added NVR People Counting as an advanced function to our cameras. It is well-received by the market since released.

Now, we release 9.0.11 and this function on NVR. From this article, you can have a better understanding about People Counting, Analysis Settings, Analysis Search and Occupancy Live View.

Note:

Only camera firmware version 4x.7.0.77 or above and NVR with firmware version 7x.9.0.11 or above supports this function

Read Next : Milesight All software firmware download

1.1 What is People Counting

People Counting is able to count how many people enter or exit during the setting period, which can therefore serve multiple purposes such as helping retailers to count how many customers came in a day. It records the number of people passing through the line automatically. Crossing along the direction of the arrow will be recorded as “In”. On the contrary, it will be recorded as “Out”.

6V2l5i6FeANBjFXsFMUleI4j wUtE11RzA



For Regional People Counting, users can check the real-time number of people and the time of each person's stay in the detection region.

hvnNzbrbKl8eBPLVZby4YrTnpc1PWDFREA

1.2 How to Set People Counting

At present, the data source of People Counting comes from the network camera side, so the People Counting function on the network camera side must be turned on. Milesight People Counting can be turned on in the network camera and the NVR side.

1) Network camera: Login the network camera Web UI, enter the “Settings” page, go to “Event” -> “People Counting” -> Tick the box “Enable People Counting” or“Regional People Counting”.

P TjD KhDSV9 oomenI23NrZriwGIiHcoA

People Counting

oNNc1YkgMJ5fYQ5KtyUDpMSAWTClLS8kzg

Regional People Counting

2) NVR:

Local Monitor: “Menu”-> “VCA” -> “People Counting” -> Tick the box “People Counting”

People Counting

hORL0Cz6q5 BuAzLXZ5rJ52Ivp05L2ObtQ

Regional People Counting



Web: “Settings” -> “Event” -> “VCA” -> “People Counting” -> Tick the box “People Counting”  or“Regional People Counting”.

VkXuj47cNAYXSgi0WTEKBgall20FkqGluw

People Counting

hIBPSmaMEAf1wUw9l VAKt51GU69a1sy3A

Regional People Counting

2. Smart Analysis

About People Counting, there are two options in the Smart Analysis: Analysis Settings and Analysis Search.v0R7PHhNVNaS2SfcPWQ60MGW j6gvI8pLQ

Local Monitor

J51DquAkU1H85N vqkAnreW7AymwD6U0SQ

Web Page

2.1 Analysis Settings

Unlike the People Counting mentioned above People Counting on the network camera side, People Counting under Group Settings is used to realize the Analysis Report and Occupancy Live View function. The Group Settings and People Counting are independent. You can select desired group to customize different People Counting Settings.

Local Monitor

9v4XMlOm0yocdBfMOaHwYiVkLNcaWyO 2Q

Web Page

There are two main modules: Group Settings and Live View Settings.

1) Group settings

To classify channels, the concept of Group is introduced. In this regulation, you should add desired channels to the corresponding Group to monitor people flow. Although you just have one channel, you also need add into Group.

1Y4FGl3iggm1bRwLRC

Local Monitor

TxB9jW8BUZ2vmHK wkmJXsiCDgHan83fw

Web Page

NVR supports 9 group settings at maximum. You can also name the groups to distinguish them by group names. Except the Group No., all other parameters like group name and channel can be set under Group Interface via Edit icon.

ykYSyK4CgbdesSNsOfbZu4Ywicf gQM g

Local Monitor

7TINcQK csFG6mIkeSEZ6nX9 bKJ6X kCg

Web Page

You can delete group by Delete icon.

2) Live View Settings:

Live View Settings will be effect in Occupancy Live View of Preview Mode.

l Max. Stays:

You can set Max. Stays under “Analysis Settings” -> “People Counting” interface. Max. Stays column supports typing numbers (1~99999).

PTru7pHXXaiyOt

Local Monitor

3fuVaUUjqvSYLy82klNhBhX2e PTJ3demw

Web Page

  • Reminders of Green/Red Light:

Display when Occupancy Live View is green/red. The user can customize the configuration. Up to 45 characters can be input. You can also set it blank. The Live view will not display the corresponding content.

  • Live View Counting Reset:

Reset the group counting data in live view. This is used to reset Occupancy Live View manually when you are not satisfied with the data display in live view.

  • Live View Counting Auto Reset:

It is used to clear the Occupancy Live View count regularly. Combined with the configuration of Day and Time below, Auto Reset will clear the Live View count at the corresponding time point.

1J ry1ZoNUOD7tacB7yU9h468DGvzMiTrA

Local Monitor

givwFfUQ52TTNnURQqUjkBbs

Web Page

  • Alarm Action:

When the current Group reaches the Max. Stays value, alarm will be triggered according to your Alarm Action settings. There are 5 actions: Audible Warning, Email Linkage, Action, Alarm Output and White LED.

  • NVR Counting Reset:

Reset the group counting data stored in NVR side.

Note:

Compared with Live View Counting Reset which simply clears Live View data, NVR Counting Reset clears all the relevant data which is used for the analysis of data generated.

2.2 Analysis Search

After above all Analysis Settings, you can start using the Analysis Search function. With this function, you can search by various methods, like group/camera, daily/monthly report, etc. The search result supports Line Chart and Histogram both on local monitor and web page, which could help users to study flow trend.

The search part supports:

1) Search by group or camera.

S5m71 oqUSXV
tIc5F5GqsgtS27Hmp1P0v uGrLEHC2CbJw
vtMxo8ZJjJFf7Q NB FfUTIz wPvSu4psA

Local MonitorknJB7O5XCZghKF3jaz16LWwoESIX0kl3NgL1zzelkr2cI3mmY1R7GMdC54UOSd5LbGCAGFnOzKGZ5Qd4ImqQqENUdUHBELDkC Q5Ug

Web Page

Note:

① For searching by camera, please select the corresponding channel.

② For searching by group, please select the corresponding groups.

③ For searching by regional people counting, please select the corresponding channel and regions.



2) Search by daily report, weekly report, monthly report.

3) Search by number of people entering, number of leaving, total number of people.

Note: This option is only available for searching by group and searching by camera.

All data will be saved in the independent database of NVR.

Search results support line chart and histogram display.

Local Monitor search results

Line chart:

u3Q3A pzVW3X3fdX8hbIXqdyQ45eV vimQ

Click the corresponding point with the mouse, and the value of the point will be displayed directly above the point.

8ApDg 4aju6Gb0EH0F0lZ789QTEZ4OQ75Q

Histogram:

In this page, there are two display modes of results: Daily Report by Hour and Daily Report.

Daily Report by Hour:

You can directly see the people flow of a specific time in a day.

HUio5oacLz1yd YP15ek1B ITvYIyee9Vg

Daily Report:

They are identified by total and every camera in the group.

Daily Report:

They are identified by total and every camera in the group.

Web Page search results:

Line chart:

zZQPBC3M0dhFFvVFXBUB FFtcvMLD ybZA

Click the corresponding point with the mouse, and the value of the point will be displayed directly above the point.

u obNSU4goWYtyB0mimLkb cBKuP4kOJZQ

Histogram:

In this page, there are two display modes of results: Daily Report by Hour and Daily Report.

Daily Report by Hour:

You can directly see the people flow of a specific time in a day.

MuvK 9izX5QLruEQ8iFF1Z

Daily Report:

They are identified by total and every camera in the group.

XYUFN0DLckJKEUYTiEWyLEd SRir67TCdA

You can select desired file format to export/backup report, such as CSV, PDF, PNG.

2MIeGmNPl5kuw6yl9RksN0ve90YEEt Cjw

Local Monitor

TR

Web Page

Please note, unlike local monitor, web page backup files need to choose download with open/save.



3. Occupancy Live View

We also release Occupancy Live View for better noticing people whether the capacity is full. It's applicable to various environment, such as education, exhibition, office building and retail, etc.

3.1 How to Enter Occupancy Live View on NVR

Occupancy Live View is only available in local monitor settings. There are two methods to enter Occupancy Live View:

1) Click the Occupancy Mode icon in the Live View Toolbar. The icon is located on the right side of Target Mode.

Jry O W4oyy10nHVKaj9f91SGxawlI30 A

2) Right-click Live View interface -> “Preview Mode” -> “Occupancy Mode”.

After entering Occupancy Live View, it will pop up with:

 HOaYnuLeMUPKtmtsrb7PVR234m1l 42I8g

Note:

For high-end level NVR with Multi- Output, we add Occupancy Live View option, which can control Occupancy Live View display in corresponding option.

You can go Settings -> General -> Device to adjust the video output. For example, after choosing HDMI1/VGA1, Occupancy Live View will be displayed on the corresponding output monitor.

Nl woZd vAFOpz4eGa5ZC8 CC26uIeOazQ



There are two methods to exit Occupancy Live View:

1) Click the exit button in the interface.

2) Right-click to exit.

3.2 Traffic Light of Occupancy Live View

If the capacity is full, the red light will be on. (capacity=Max. Stays)



Display Regulation of Traffic Light Status:

1) Available>0: Green light and you will see the words which is set as Reminders of green Light.



2) Available=0: Red light and you will see the words which is set as Reminders of Red Light.



3) No group: Both lights are gray

IwlFtvuUfPt3rr5zRv0836TvTIakg64jBA

How to Use People Counting

Introduction

To monitor the flow of people, we added People Counting as an advanced function to our cameras. It has been well-received by the market since released.

Now, we release firmware version 4x.7.0.77, separating People Counting from VCA and adding Statistics Report function. From this article, you can have a better understanding about People Counting, Analysis Settings and Analysis Search.

Note: Only network camera with firmware version 4x.7.0.77 or above supports this function.

1.1 What is People Counting

People Counting is able to count how many people enter or exit during the setting period, which can therefore serve multiple purposes such as helping retailers to count how many customers came in a day. It records the number of people passing through the line automatically. People who cross along the direction of the arrow will be recorded as IN. On the contrary, they will be recorded as OUT.

p911ydjtay6hCFszURV34CCVZa7iW9ejyA

1.2 Installation Suggestions

When the camera counts, it will frame each object. To ensure the accuracy of counting, we need to let the object pass the line completely. There are two installation suggestions as follows.

• Top Mounting: Top-mounted cameras can better separate people passing side-by-side.

• Wall Mounting: Wall-mounted cameras can better identify people.

jxiSSQ8JRTBtXDB2 BLnDKPZbuseQpYnEQ

Note: Either way, you need to make camera and people have a proper distance. And there is enough area in front and behind the detection line for the camera to recognize the object.

2. How to Set People Counting

2.1 Basic Settings of People Counting

Step1: Select Event→People Counting→People Counting in Configuration and enable it. PTZ series cameras have advanced options to select and different preset points.

tdLTOE1ZB0N SSDlqngynubVrvot2juOeQ

Step2:  Draw a line(Up to 4 lines can be set). The direction of the arrow is IN. If necessary, you can also set Min and Max size limits of object to exclude abnormal targets.

Step3: Click Edit of Schedule Settings and Choose when to count people.

1sIXCXzV4UeBjbrUr2zdCAR1rFycm68cVg

Step4: If necessary, turn on Counting OSD to display People Counting on the LiveView.

 Table1 Description of the buttons

UloBE

Table1 Description of the buttons

Parameters Function Introduction
Counting Type Check them to display these statistical categories
Font Size Smallest, Small, Medium, Large, Largest and Auto
Font Color Select the color you need
Text Position Top-Left, Top-Right, Bottom-Left and Bottom-Right of the frame
Counting Reset Reset the count of the OSD or the count of the report together
Enable Auto Reset Day Select the certain day to auto reset
Time Select the certain time to auto reset

2.2 Alarm Settings of People Counting

Alarm Trigger: Enable Alarm and set Thresholds first, and then you could do other settings.

t9ZgMjUz9TnsaR QRY0tgS5FQoVRldVFkw

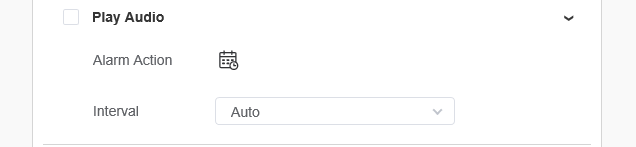

Alarm Action: Configure the specific actions of the camera when the alarm is triggered.gOw0JPnSUfMKd1rXn5OfymcFpDOsB0w2 w

sgTvHBgOa305XwxEmQ 0ZrBWpvfeD9jfQkzfvfpF L QkmaIEUw NLS iJztqUDs39gSjUCXif3dO08pATq2FPdruqqh7stGiVFbATable2 Description of the buttons

q95SN3yEJUFHo6wZ7N8XTwPeg46yQD6WEA
bl5pYTw4aa5JA3GvA9kBYjjxRGuNN cZsw

3. Regional People Counting

When enabling regional people counting, users can check the real-time number of people and the time of each person's stay in the detection region



Settings steps are as shown below:

Step1: Enable Regional People Counting;

Step2: Set detection region and object size limits. The object size limits can refer to screenshot above;

Step3: Set detection schedule, edit the schedule settings and choose when to count people.

CKC4NIE7989ww9ULW QzYbfy3FWmD41QQ

Step4:

Set Alarm Trigger and Alarm Action, Alarm will be triggered and take actions what you chose when the thresholds reaches to a certain value.

s0kimepR0CrMFeVxPWYYVUfxF 4ziVwehQ

Note:

Camera firmware version xx.7.0.78 or above  support regional people counting

.

4. Statistics Report

After a certain time of counting, you can start using the Statistics Report function. With this function, you can search by Statistics Types or Report Type. The search result supports Line Chart and Histogram, which could help users to study flow trend.


Search: Select Event→People Counting→Statistics Report in Configuration. Before click Search, you need to configure each parameter.

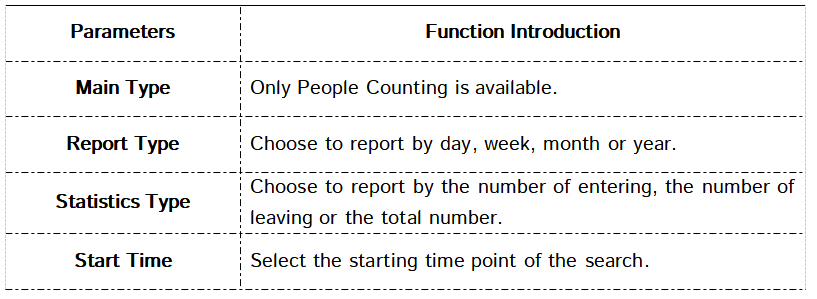

Table4 Description of Parameters

lxlVFVdNYwTznRY8NOvHoOX1 QGebSPM A

Click the button in the top-right corner to switch Line Chart and Histogram.

qZOD3eUm1 dgt TxAynCeJyG X rgAdjGw

Export: Click Report Export to manually export a picture or a CSV sheet of current display result.

uX6bmHJZj39thBFMwCNdvYsVe6v1Hg3EJQ

Click Auto Export to configure the time, range and direction for automatic export, which only supports CSV sheets.
